Checked by OPHTAZON
Possible installation on quotation
Buy now 15 000 €
ref : 12840
Year of mfg. : 2014
Available
Latest check up : 2026
Possible installation on quotation
Used equipment inspected by our experts
Functional condition: very good
Cosmetic condition: very good
Takagi reliability and precision
Express delivery available on request
Technical specifications:

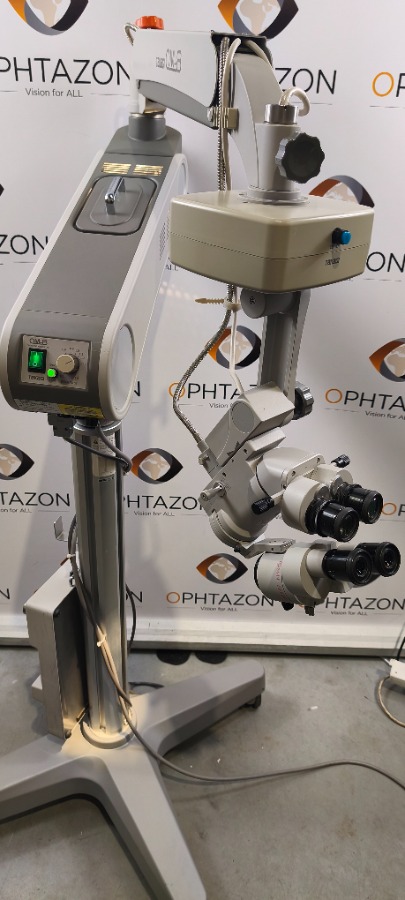

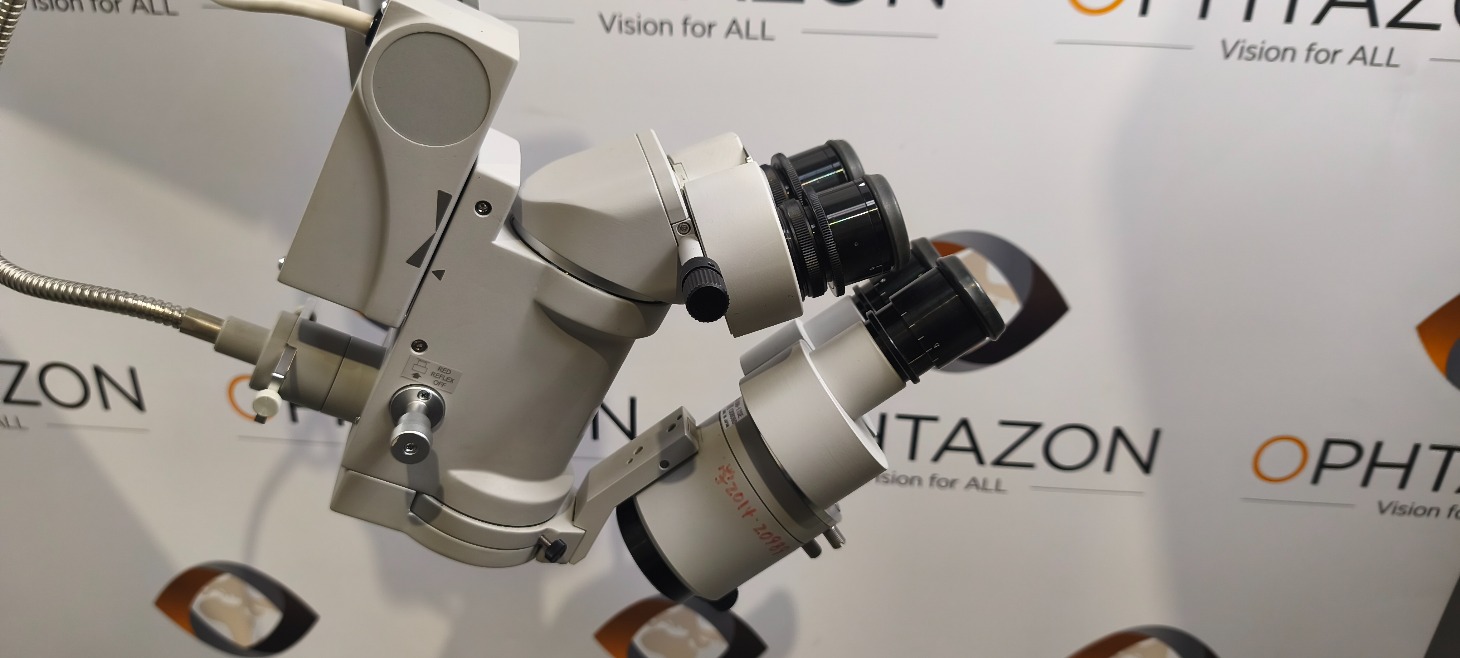

The Takagi OM-8 operating microscope is used in particular for ophthalmic microsurgery.
Optics
- Change of magnification :
- Manual version: 5 fixed positions
- Motorized zoom version: continuous zoom (ratio approx. 1:5)
- Lens: focal length F = 175 mm

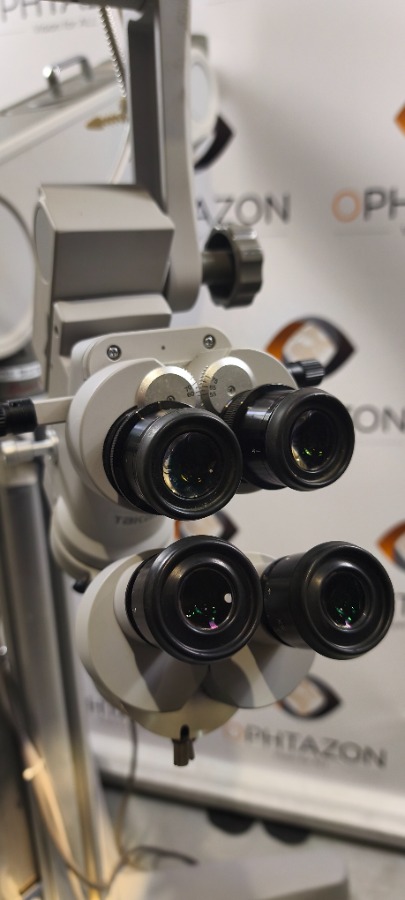

- Eyepieces: 12.5×
- Binocular head: 45° inclined with convergent optics, focal length F = 125 mm
- Total magnifications:
- Manual: 3.6×, 5.4×, 8.9×, 14.3×, 22.3×
- Zoom: approx. 4.28× to 21.4×
- Actual field of view :
- Manual: Ø 63 mm → Ø 10.1 mm
- Zoom: Ø 52.5 mm → Ø 10.5 mm
Settings and movements
- Working distance: ~164 mm
- PD adjustment range (interpupillary distance): 55 mm → 75 mm
- Diopter adjustment: ±5 D
- Focusing stroke: 30 mm
- X-Y unit (optional): ±25 mm in X and Y
Illumination
- Illumination method: coaxial, via fiber guide
- Light source: 15 V / 150 W halogen bulb
- Illuminated field diameter: Ø ~54 mm
- Integrated filters :
- anti-heat, anti-UV (permanently integrated), blue-cut filter and retinal protection
Structure and mechanics
- Mounting type: floor-standing
- Maximum arm extension: ~1045 mm
- Vertical arm travel: ~400 mm
- Base dimensions: ~640 × 640 mm
- Approximate weight: ~82 kg (varies according to configuration)
Power supply & others
- Power supply: AC 100 V, 120 V or 230 V (50/60 Hz)
- Power consumption: ~220 VA
- IP classification (controller stand): IPX8
Typical use: a robust operating microscope for delicate (often ophthalmic) surgery, with high-quality apochromatic optics, powerful illumination and ergonomic settings for the surgeon.
